Industrial vacuum IVM 100/36-3 Oss
Three-motor, mobile and robust middle-class IVM 100/36-3 OSS industrial vacuum cleaner for fine and coarse solid matter. With electronic overfill stop for solids and dusts.
For large quantities of vacuumed material, with electronic overfill stop for solids and dusts, durable, robust, compact and mobile: Our 3-motor, middle-class IVM 100/36-3 (H) industrial vacuum cleaner for the universal absorption of fine and coarse solid matter in industrial environments. The reliable machine works in single-phase operation and each of the three motors can be individually controlled. The large star filter in dust class M can be cleaned easily, comfortably and reliably using the shaker lever. The filter cleaning extends its service life, thus reducing the maintenance effort. The body and collecting container of the machine are made from acid-resistant stainless steel, whereas the housing has been manufactured from resistant steel and has large wheels for easy transportation.
Features and benefits
Overfill stop for solids
Reliably prevents overfilling of the collection container. Switches the machine off automatically when the collection container is full.
Fitted with three blower motors
Three powerful fans for impressive cleaning performance. Fans can be switched on separately for individual suction power as required.

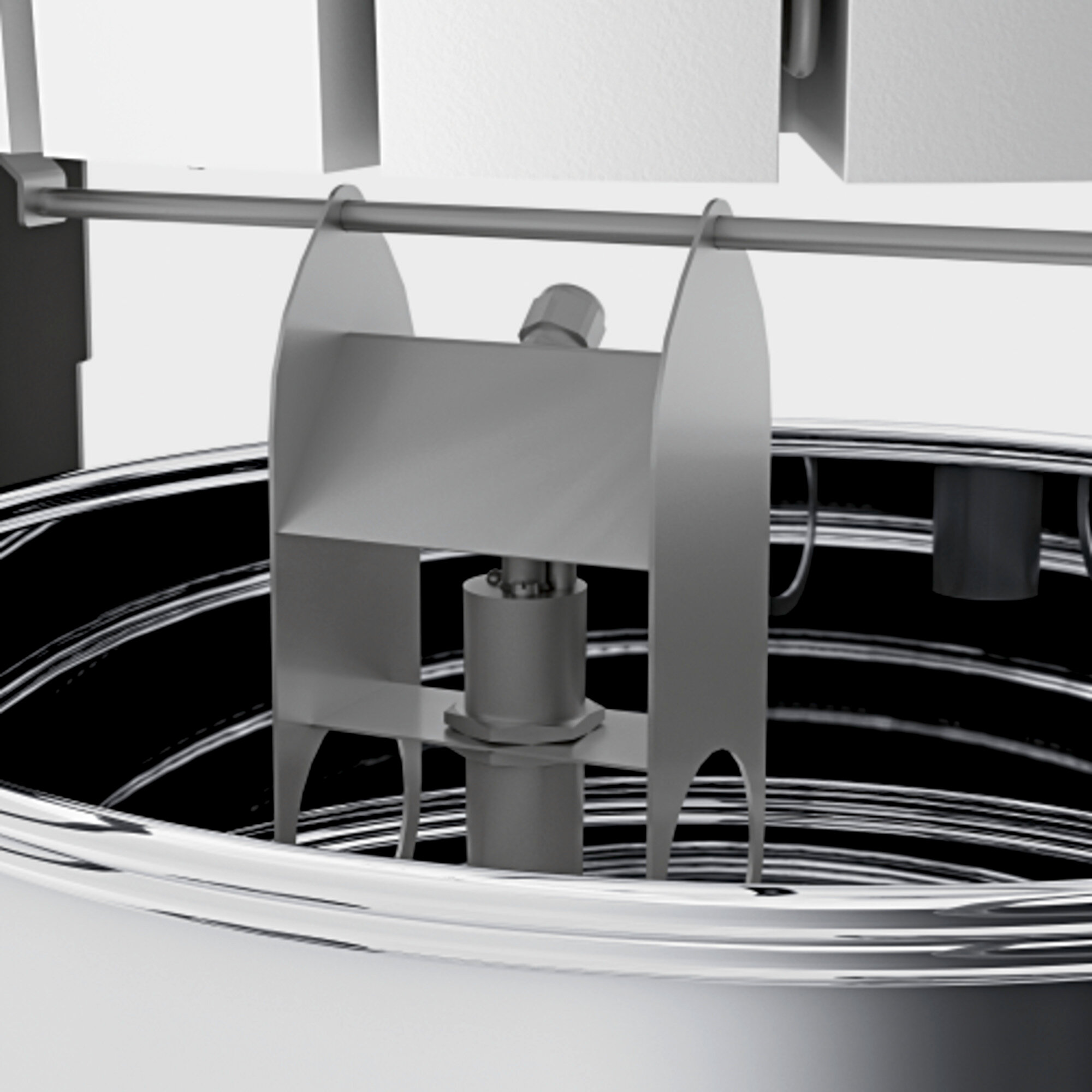

Manual IVM filter cleaning
Effortless operation by means of an ergonomically placed lever if required. Extends the life of the filter and thus reduces the maintenance effort. Identical cleaning results, regardless of the amount of force used.Equipped with extra-large star filter
- For safely vacuuming solids and dusts up to dust class M.
- Also suitable for large quantities of dust.
Specifications
Technical data
| Supply voltage (Ph/V/Hz) | 1 / 220 - 240 / 50 - 60 |
| Air flow (l/s/m³/h) | 222 / 799 |
| Vacuum (mbar/kPa) | 254 / 25.4 |
| Container content (l) | 100 |
| Container material | Stainless steel |
| Rated input power (kW) | 3.6 |
| Vacuuming type | Electric |
| Connection nominal diameter | ID 70 |
| Accessory nominal diameter | ID 50 ID 40 |
| Sound pressure level (dB(A)) | 79 |
| Main filter dust class | M |
| Filter area for main filter (m²) | 2.2 |
| Weight without accessories (kg) | 76 |
| Weight incl. packaging (kg) | 78 |
| Dimensions (L x W x H) (mm) | 1020 x 680 x 1720 |
Equipment
- Main filter: Star filter
- Accessories included in the scope of delivery: no
- Automatic filling level shut-off
Videos
Application areas
- For large quantities of solid matter and dust
