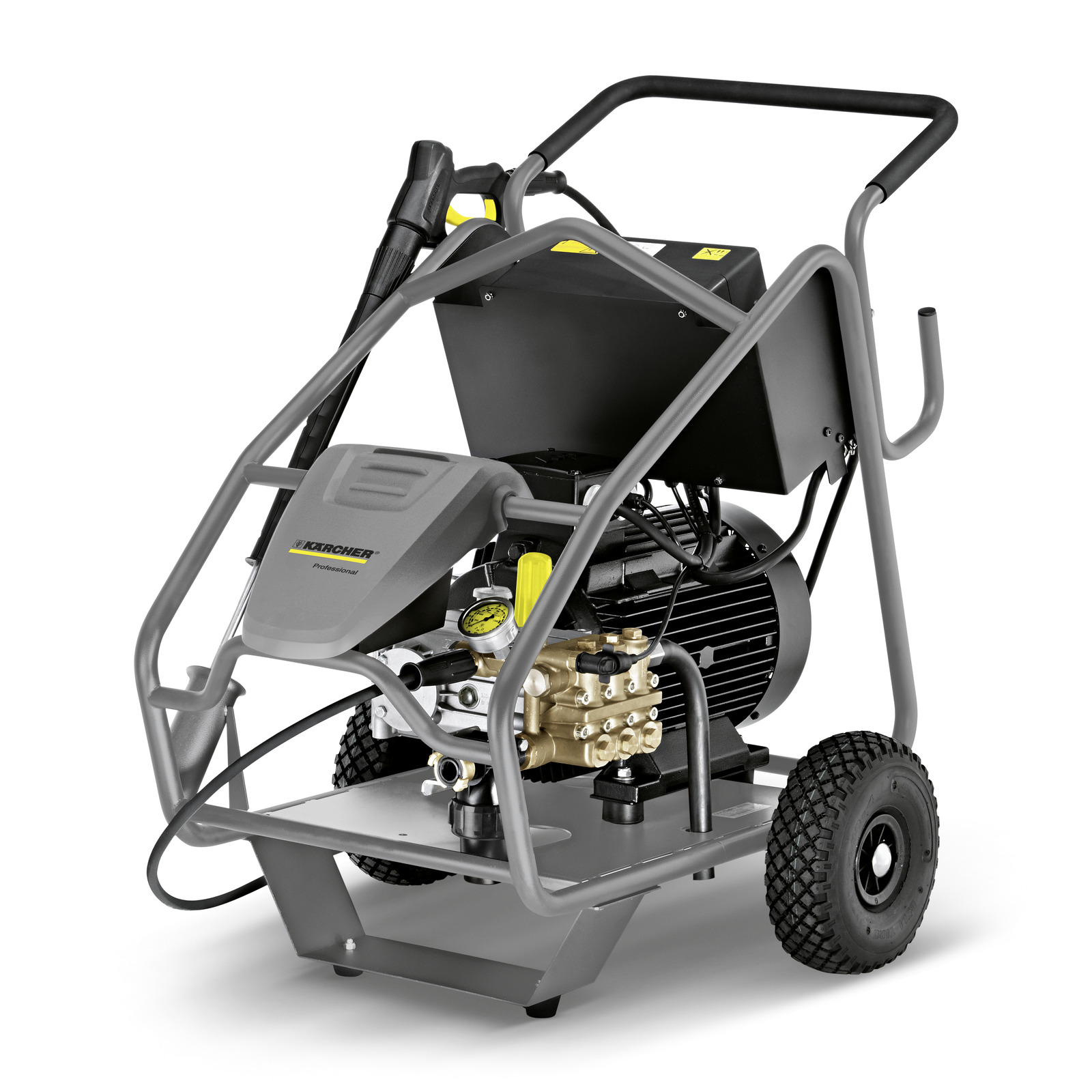

Kärcher high-pressure cleaner with wheels and handle, featuring a robust frame and visible motor components.

Ultra-high-pressure cleaner

HD 9/50-4 Cage

This device requires instruction

Part number: 1.367-156.0

Robust industrial gun
4-pole air-cooled electric motor
Low-water cut-out (optional)

Technical data

Operating pressure (bar / MPa)	150 - max. 500 / 15 - max. 50
Flow Rate (l/h)	500 - 900
Water feed temperature (°C)	max. 60
Fuel	Electric
Power Rating (kW)	15
Power supply (Ph / V / Hz)	3 / 400 / 50
Pump Type	Maximum performance Kärcher crankshaft pump
Weight without accessories (kg)	150
Weight (with accessories) (kg)	195
Dimensions (L × W × H) (mm)	930 x 800 x 920

Scope of supply

Trigger gun
Stainless steel spray lance: 700 mm
Flat jet nozzle

Equipment

High-pressure hose length
High-pressure hose type: Heavy duty
Safety valve
Operating hour meter

Recommended maximum duration of use in hours/day.

Guarantees a permanentlyhigh degreeof mobility, even onuneven ground.

Product information and benefits

Handy and convienent: The lance holder and the integrated hose hook ensures that the accessory is ready at the machine. The hour meter always shows the exact operating time of the pump. Safe Storage: Accessories and tools are stored in a protected box. Easy to move: The pushcart principle makes it possible to eassily transport the machine even to areas that are difficult to access. Reliable and safe: Kärchers high-performance crankshaft pump ensures optimal pressure. The optional dry-run cut-out protects the machine as well as the user.

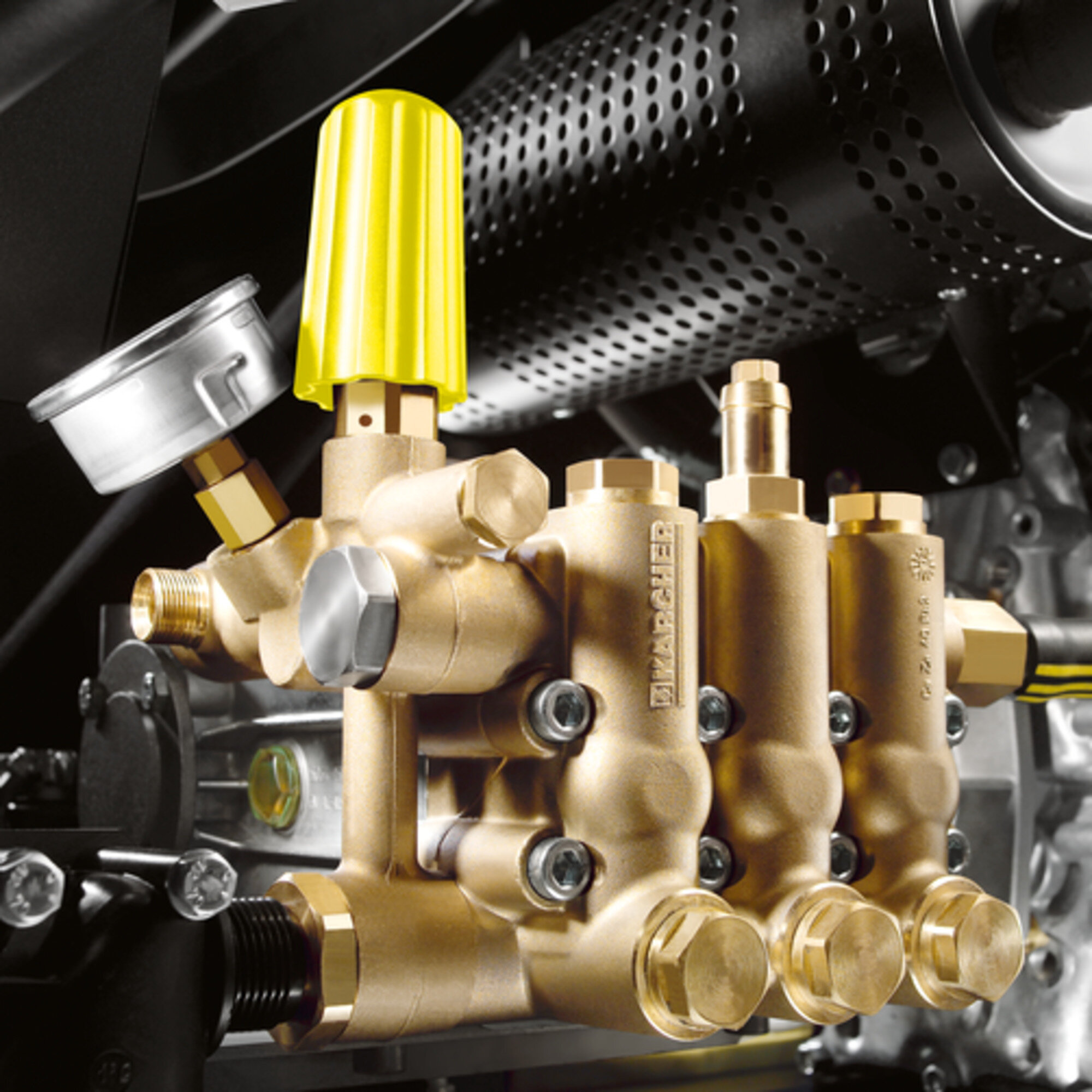

High-performance crankshaft pump

Reliable and durable Kärcher high-performance crankshaft pump ensures optimal pressure.

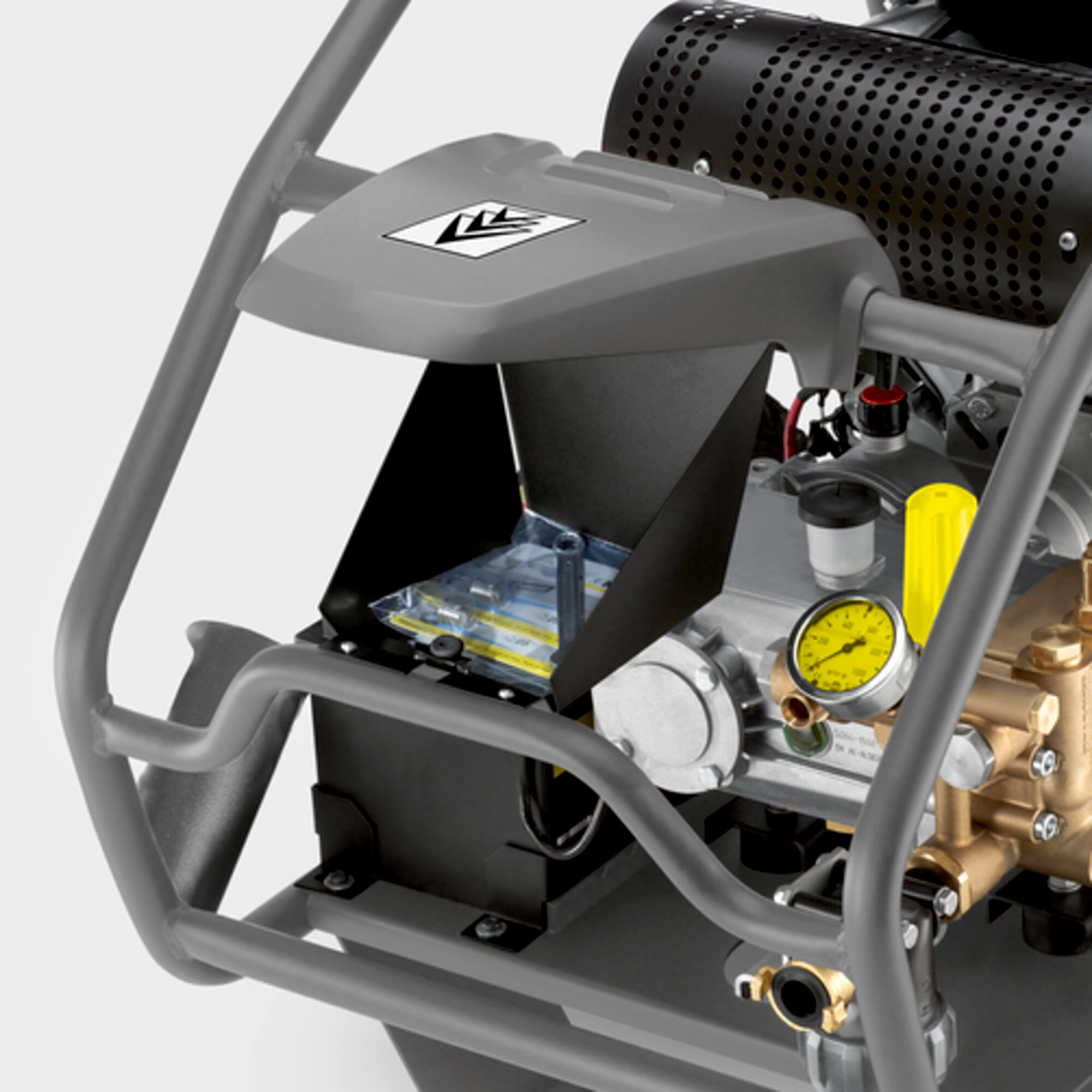

Safe storage

Accessories and tools are stored in a protected compartment. This means that everything is always in its place.
